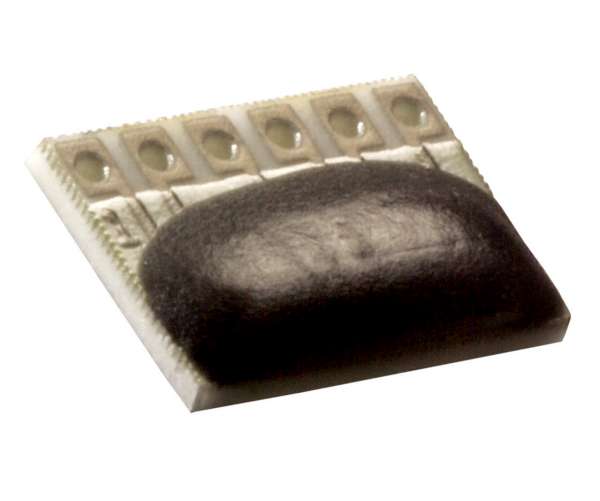

MLS位置傳感器
MLS位置傳感器
常用型號：
MLS1000, MLS2000, MLS5000
產品說明：
Sliding the MLS-Sensors along a magnetic scale will produce a sine and a cosine output signal as a
function of the position. In order to deliver satisfying results, the magnetic sensor material must be
saturated. For common scales this condition will be achived as long as the air gap between sensor edge and
magnetic scale surface does not exceed half of the pole pitch. As the sensor principle is based on the
anisotropic magnetoresistance effect, the signal amplitudes are nearly independent on the magnetic
field strength and therefore on air gap variations. In addition, some sensor types integrate over
more than one pole in order to improve sensor performance. The sensor detects a magnetic gradient field and
is thus almost insensitive to homogenous stray fields.
輸出： 16mV/V
量程： -
封裝：PC板安裝
工作溫度范圍：-40℃~+85℃
精確度：-
供電電源：5V
特點：高分辨率
類型：位置傳感器
電氣連接：PC板安裝
典型應用： 長度測量
